iFLEXTUBE Diffuus SV
iFLEXTUBE Diffuus SV
Dimension
Dimension
(W) 12mm x (H) 12mm x (L) 2000mm
Standard Length is 2000mm, custom lengths are optional. Maximum 5000mm depending on installation option.
Electrical
Electrical
16W/Meter, 24VDC
Lumen output
Lumen output
500 to 600 Lumen/Meter
Waterproof rating
Waterproof rating
IP67, IK08
Share
Ask about this product

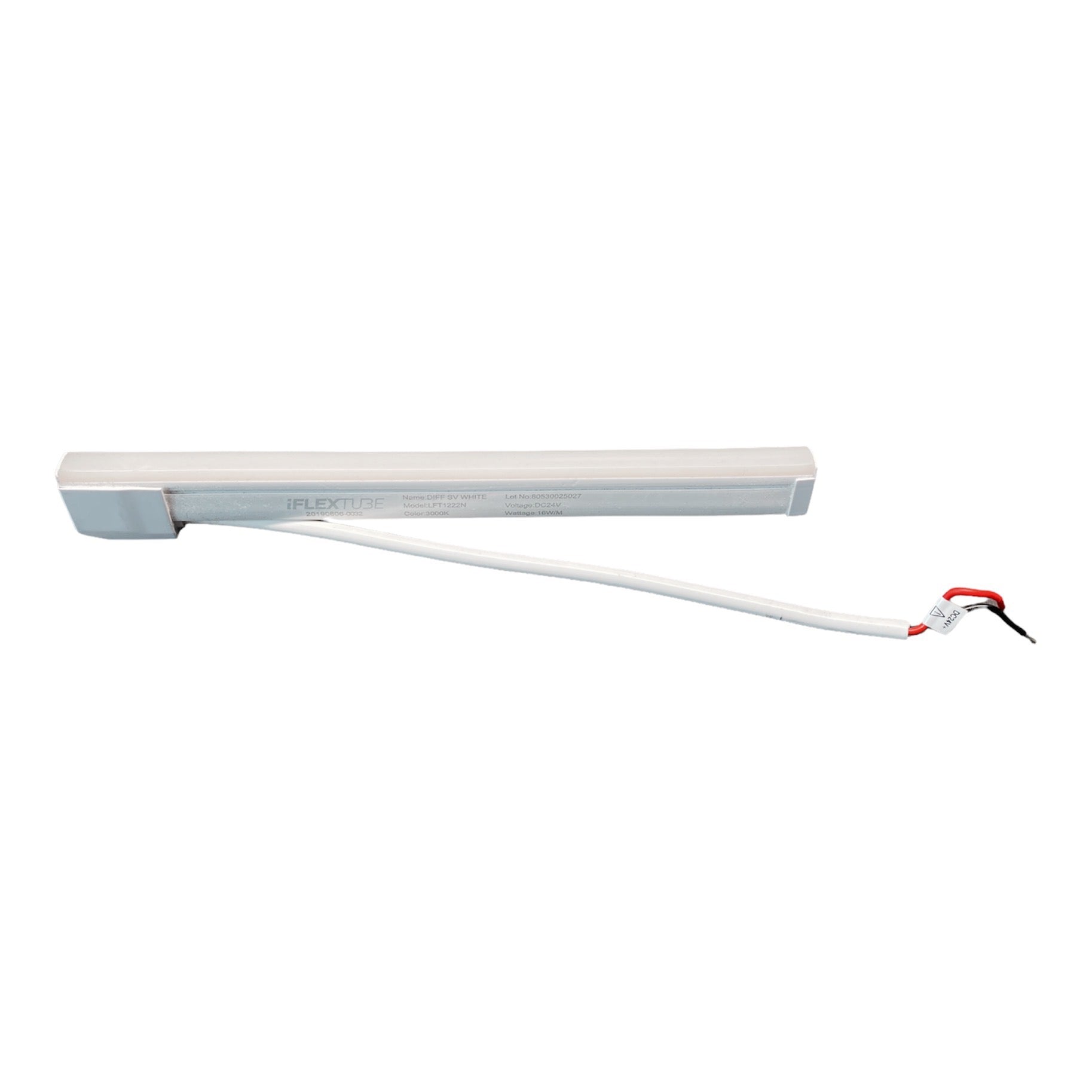

DIFFUSED SV
DIFFUSED SV is a flexible, direct view LED strip with a wired digital communication network. It comes in a 2meter spool and can be cut to length to suit project requirements or you can specify custom build to order lengths. It features a highly durable PVC body that is outdoor rated and impact resistant.
-
Select your installation option
3 cable feed styles,
-
Choose your color
Available with mono white or RGBW to bring your design vision alive. Need a special color? We'll tailor-make colors for your project.
-

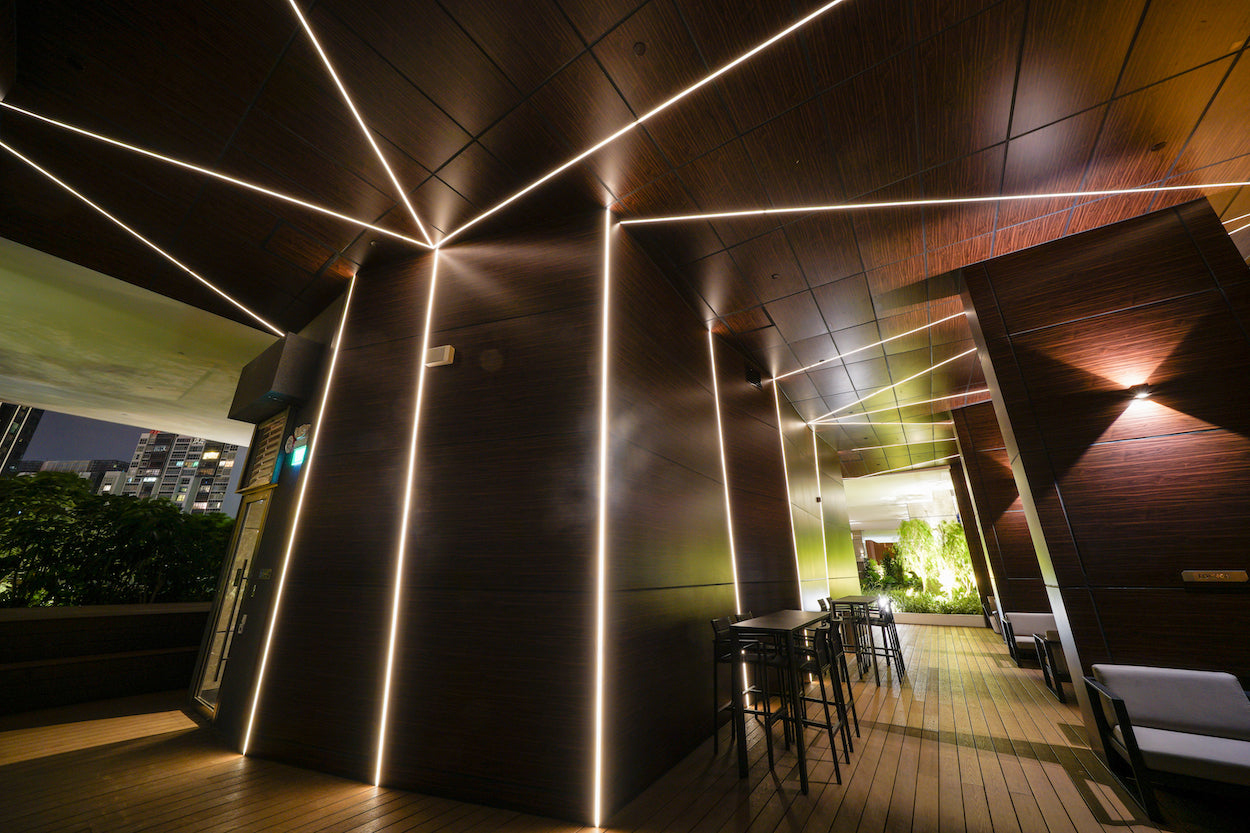

Energy efficient and a dot-less look
16W power consumption per linear meter and a dotless direct view look.
Inklapbare content
What are the available lengths?
Standard 2 meter, custom lengths are available.
Fixture Connectors?
0.3m attached injection molded feed cables with male and female connector
Warranty period?
Standard 3 years, optional 5 years for purchase
What is the control protocol?
none: DMX/RDM (0-100%), 0-10V (10-100%), or DALI (0-100%) via iFlexpower Driver Series
Other PX feature an in-built DMX512 IC on FPCB
